File 02 · Flight ControllerAlpha
A flight controller, minus what you don’t need.
OSHWA certifiedModel· pick your build
What does this do?
The flight controller is the drone's computer. This one runs Betaflight on an RP2354, a dual-core chip from the Raspberry Pi Pico family, reading a 6-axis IMU thousands of times per second and correcting all four motors to follow your commands. It records blackbox to a microSD card, draws OSD over your analog video feed, and has a switchable 10 V rail so you can power your VTX from it.
See how the whole drone works →Published so you can study it. Produced so you don't have to.

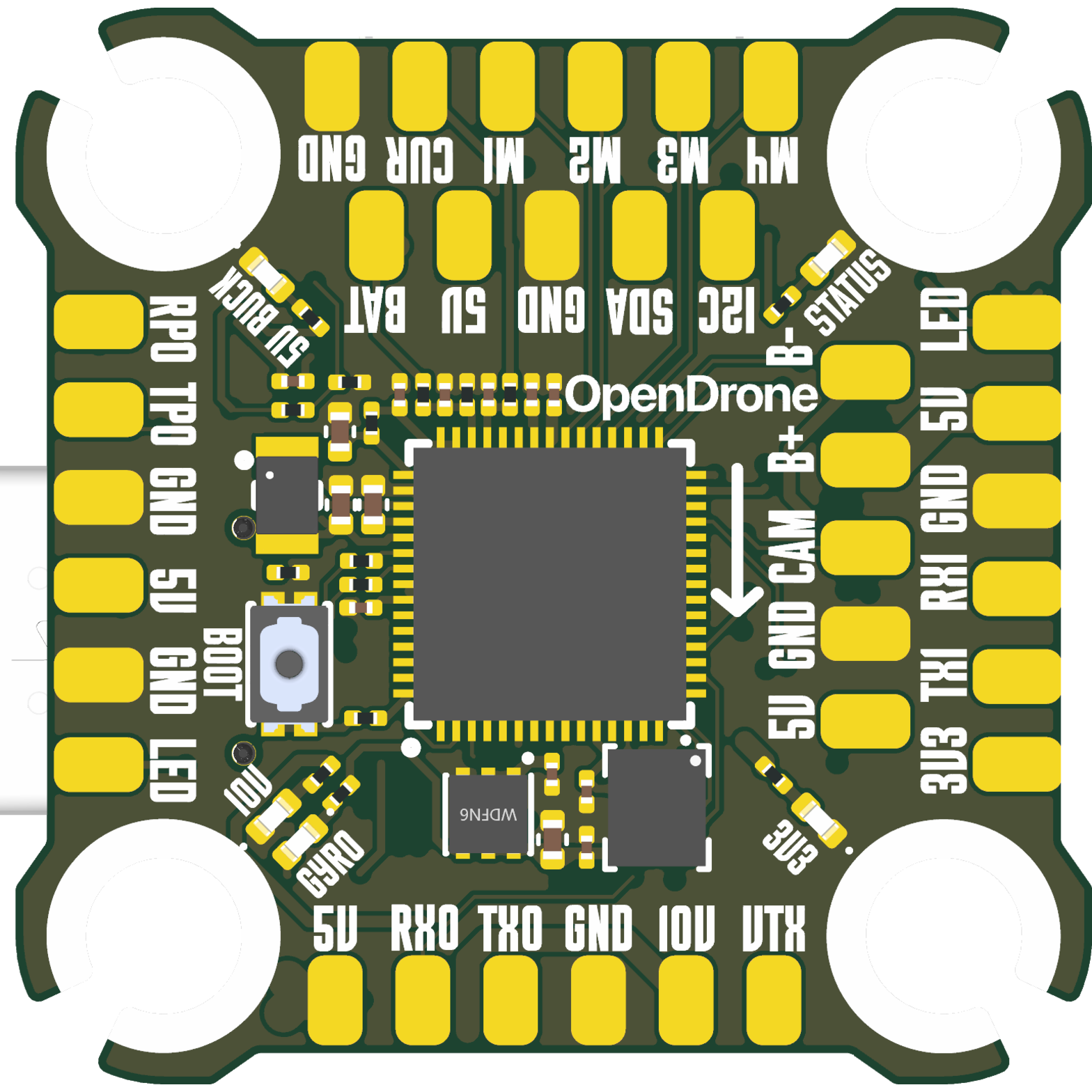

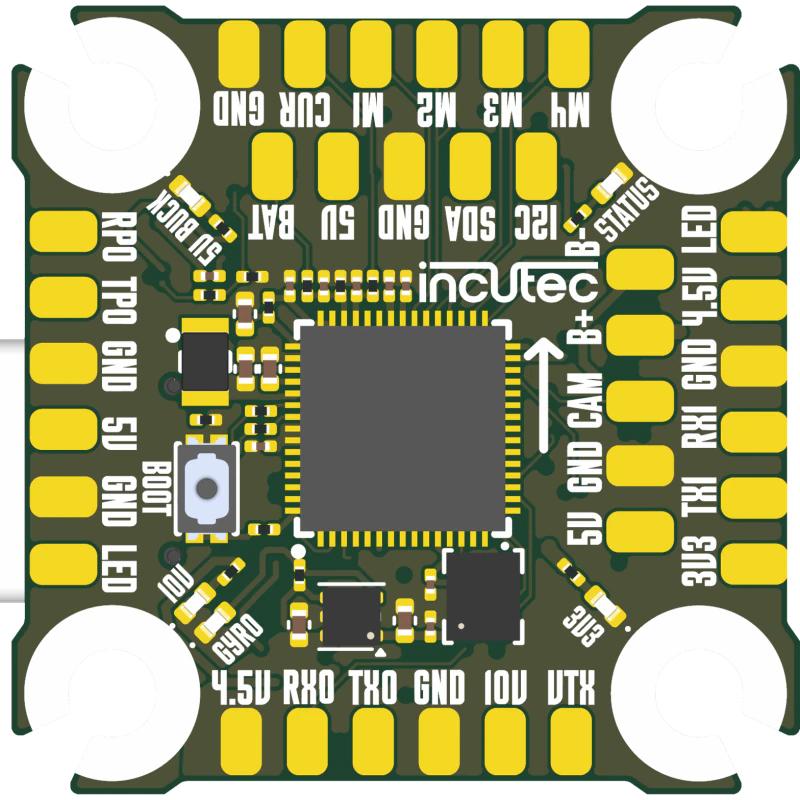

Teardown
- RP2354A×1
- 6-axis IMU×1
- microSD blackbox ×1
- Analog OSD×1
- 10V / 5V buck×1
- Gyro 1.8 V LDO×1
- 3.3 V logic LDO×1
- USB-C + 4.5V OR×1
- JST-SH I/O connectors×1
- I/O
Every spec, one table
- Firmware
- Betaflight
- MCU
- RP2354A
- IMU
- BMI270
- Barometer
- None
- Blackbox
- microSD
- OSD
- Analog and digital
- UARTs
- 3
- Motor outputs
- 4× DShot, bidirectional
- RX
- External, CRSF or SBUS
- Input
- 3–6S LiPo (9.0–25.2 V)
- BEC
- 10 V switchable + 5 V always-on, 3 A
- Current sense
- Yes
- USB
- USB-C
- Mounting
- 20 × 20 mm, 3.0 mm holes
- Dimensions
- 26.9 × 26.9 mm
- PCB
- 6-layer, 1.6 mm

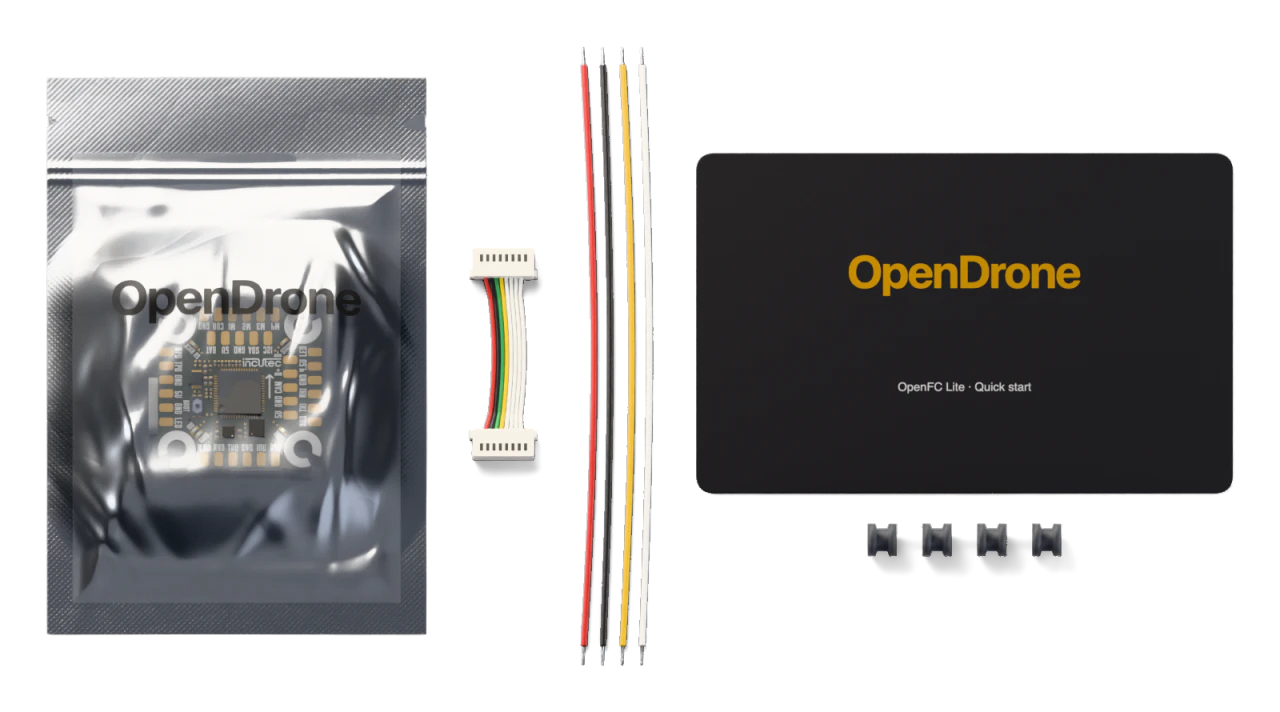

In the box
- 1×OpenFC Lite board
- 1×8-pin JST SH ESC harness
- 4×M3 rubber soft-mount grommets
- 1×Quickstart guide
Provenance
- DesignedLeuven, Belgium
- AssembledShenzhen, China
- NextEU assembly
The firmware this board runs on
Betaflight is community firmware we didn't write, and it is what makes this board fly.
Developed by these people
Manufacturer & safety information
Incutec BV, Stapelhuisstraat 15, 3000 Leuven, Belgium · contact@opendrone.be · KBO/BCE 1038.934.039 · EU Declaration of Conformity
Product type: OpenFC Lite · SKU OPENFC-LITE-2020
- Not a toy. Not for persons under 14; minors only under adult supervision.
- Component for self-built unmanned aircraft: the builder is responsible for the assembled aircraft and its lawful operation.
- LiPo batteries can ignite when damaged, shorted or overcharged; never charge unattended.
- Remove propellers before bench testing, configuration or firmware updates.
- Observe the voltage and current limits in the specifications; reverse polarity destroys the board.
- Geen speelgoed. Niet voor personen onder 14 jaar; minderjarigen alleen onder toezicht van een volwassene.
- Component voor zelfgebouwde onbemande luchtvaartuigen: de bouwer is verantwoordelijk voor het samengestelde toestel en het wettige gebruik ervan.
- LiPo-batterijen kunnen ontbranden bij beschadiging, kortsluiting of overladen; laad nooit zonder toezicht.
- Verwijder propellers vóór benchtests, configuratie of firmware-updates.
- Respecteer de spannings- en stroomlimieten in de specificaties; omgekeerde polariteit vernietigt het board.
- Ceci n'est pas un jouet. Interdit aux moins de 14 ans ; mineurs uniquement sous surveillance d'un adulte.
- Composant pour aéronefs sans équipage auto-construits : le constructeur est responsable de l'appareil assemblé et de son utilisation licite.
- Les batteries LiPo peuvent s’enflammer en cas de dommage, de court-circuit ou de surcharge ; ne chargez jamais sans surveillance.
- Retirez les hélices avant les essais au banc, la configuration ou les mises à jour du firmware.
- Respectez les limites de tension et de courant des spécifications ; une inversion de polarité détruit la carte.
