File 03 · ELRS ReceiverAlpha
An ExpressLRS receiver, open from antenna to firmware.
OSHWA certifiedModel· pick your build
What does this do?

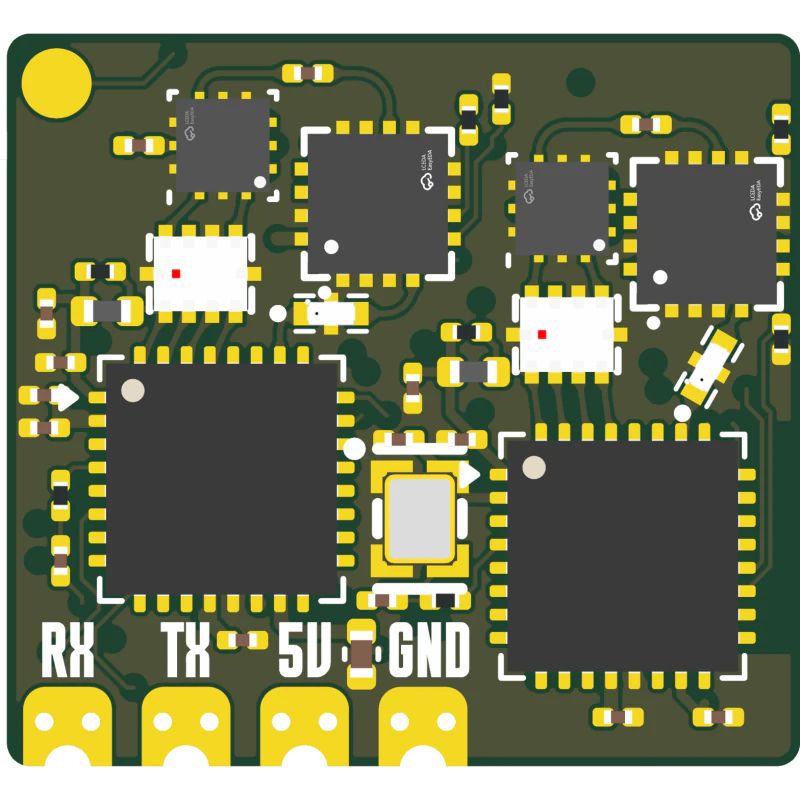

A receiver has one job: get your commands off the air and hand them to the flight controller. OpenRX runs ExpressLRS, which uses LoRa modulation: the signal is a frequency chirp. That is why a receiver this small, but still holds a link kilometres out while Wi-Fi on the same 2.4 GHz band dies across the house. It speaks CRSF to the flight controller over one UART wire, is powered from a 5V pad, and flashes over Wi-Fi or Betaflight passthrough. Four variants, from ceramic antenna Lite to dual-radio Gemini.
See how the whole drone works →Published so you can study it. Produced so you don't have to.

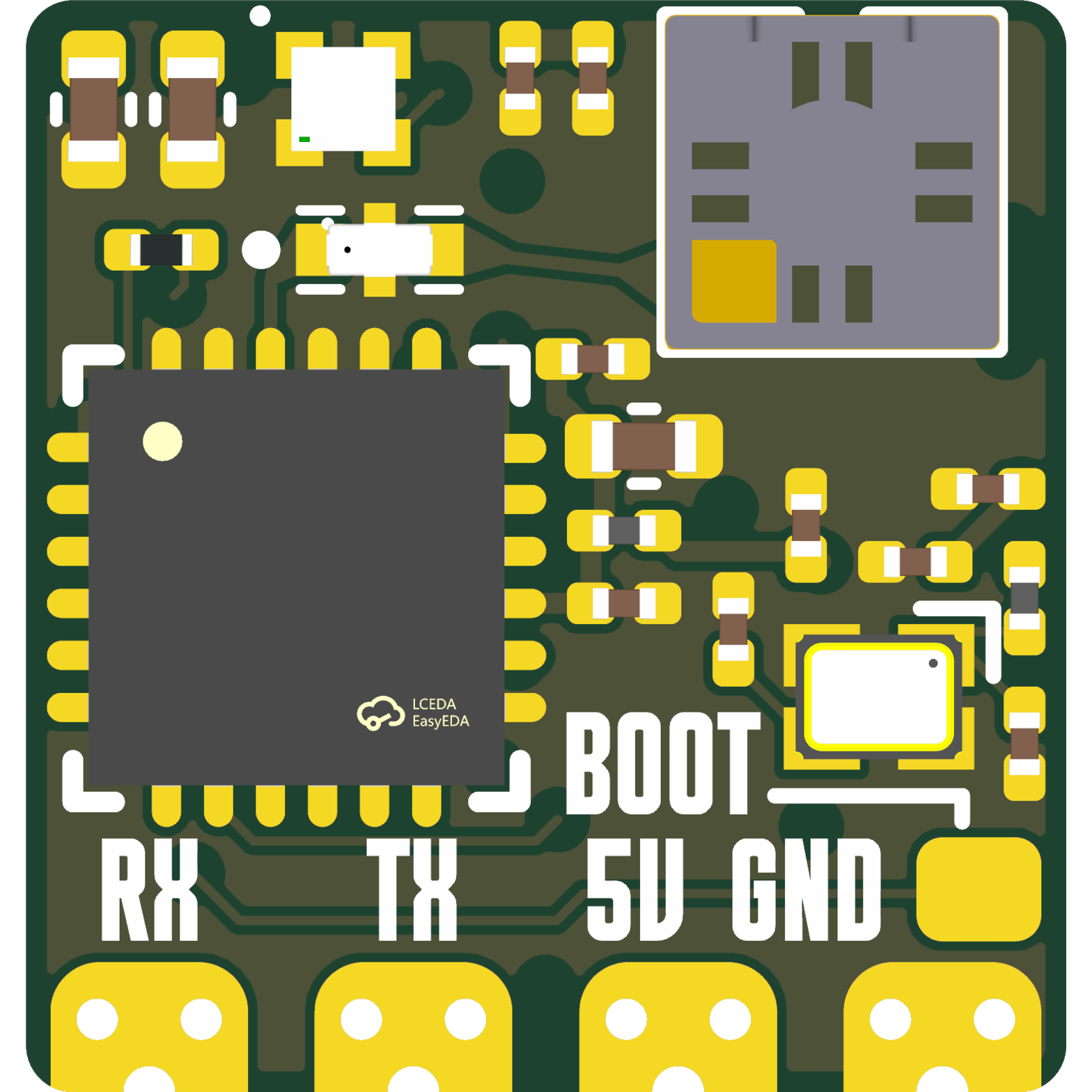

Teardown
- SX1281 · 2.4 GHz LoRa radio×1
- ESP32-C3 · MCU×1
- 2.4 GHz band-pass filter×1
- ELRS link antenna×1
- Wi-Fi antenna×1
- 52 MHz TCXO×1
- TLV75533 · 3.3 V LDO×1
- WS2812B · RGB status LED×1
- Solder pads, boot pad×1
Every spec, one table
- Band
- 2.4 GHz
- Radio
- SX1281
- Antenna
- On-board ceramic
- Telemetry power
- 13 dBm (20 mW)
- Protocol
- CRSF
- MCU
- ESP32-C3
- Input
- 5 V pad
- Firmware
- ExpressLRS
- Flashing
- Betaflight passthrough or Wi-Fi
- Dimensions
- 10.0 × 11.5 mm
- PCB
- 6-layer, 1.0 mm

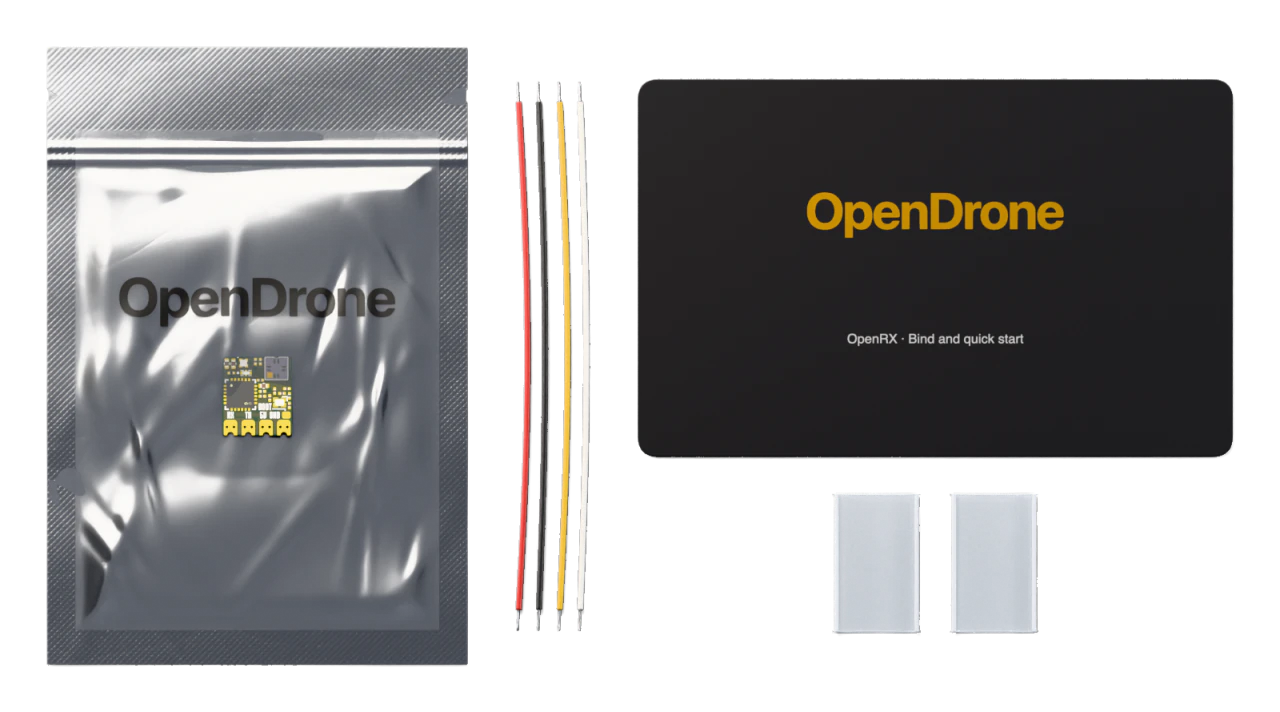

In the box
- 1×OpenRX board
- 1×Sillicone cables
- 1×Heat-shrink sleeve + double-sided tape
- 1×Quickstart guide
Provenance
- DesignedLeuven, Belgium
- AssembledShenzhen, China
- NextEU assembly
The firmware this board runs on
ExpressLRS is community firmware we didn't write, and it is what makes this board fly.
Developed by these people
