File 02 · Flight ControllerAlpha
A flight controller, minus what you don’t need.
OSHWA certifiedModel· pick your build
What does this do?

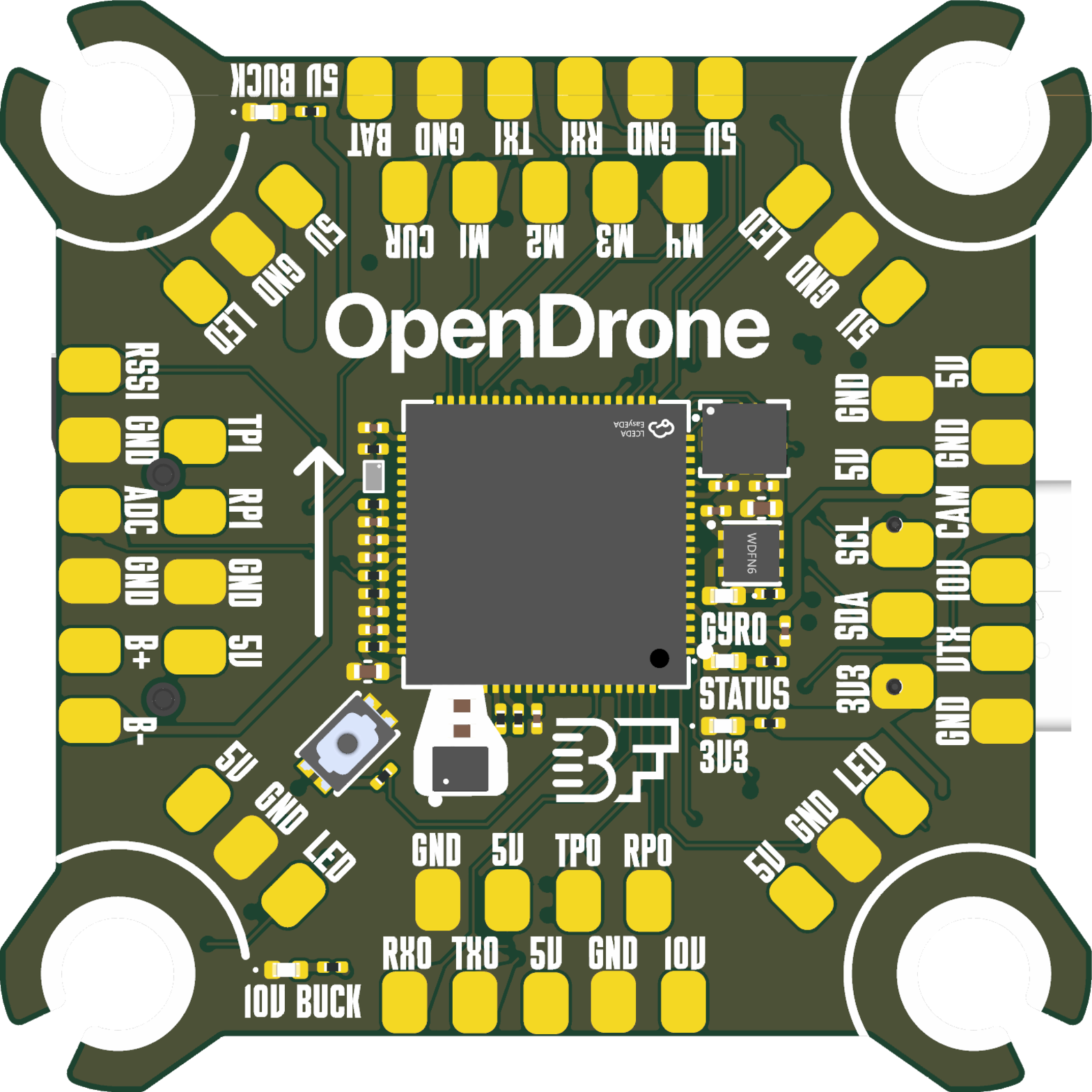

The flight controller is the drone's computer. This one runs Betaflight on an RP2354, a dual-core chip from the Raspberry Pi Pico family, reading a 6-axis IMU thousands of times per second and correcting all four motors to follow your commands. It records blackbox to a microSD card, draws OSD over your analog video feed, and has a switchable 10 V rail so you can power your VTX from it.
See how the whole drone works →Published so you can study it. Produced so you don't have to.
Teardown
- RP2354B ×1
- 6-axis IMU×1
- microSD blackbox×1
- Analog OSD×1
- 10V/ 5V buck×1
- Gyro 1.8 V LDO×1
- 3.3 V logic LDO×1
- USB-C + 4.5V OR×1
- JST-SH I/O connectors×1
- I/O
Every spec, one table
- Firmware
- Betaflight
- MCU
- RP2354B
- IMU
- BMI270
- Barometer
- None
- Blackbox
- microSD
- OSD
- Analog and digital
- UARTs
- 4
- Motor outputs
- 4× DShot, bidirectional
- RX
- External, CRSF or SBUS
- Input
- 3–8S LiPo (9.0–33.6 V)
- BEC
- 10 V switchable + 5 V always-on, 3.5 A
- Current sense
- Yes
- USB
- USB-C
- Mounting
- 30.5 × 30.5 mm, 4.0 mm holes
- Dimensions
- 37.9 × 37.9 mm
- PCB
- 6-layer, 1.6 mm
In the box

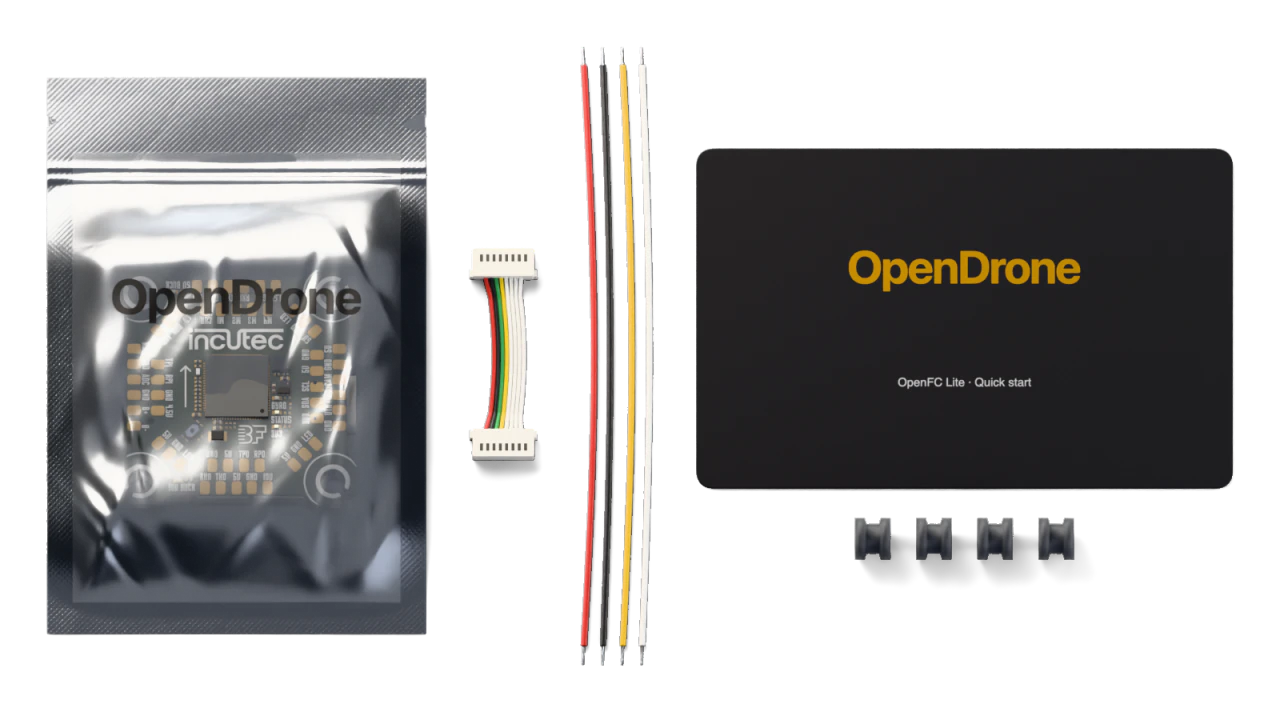

- 1×OpenFC Lite board
- 1×8-pin JST SH ESC harness
- 4×M3 rubber soft-mount grommets
- 1×Quickstart guide
Provenance
- DesignedLeuven, Belgium
- AssembledShenzhen, China
- NextEU assembly
The firmware this board runs on
Betaflight is community firmware we didn't write, and it is what makes this board fly.
Developed by these people
